Radar
- Detection up to 7 meters.
- Motion identification Forward-backward motion detection.
- Quick setup Configured easily with remote control.

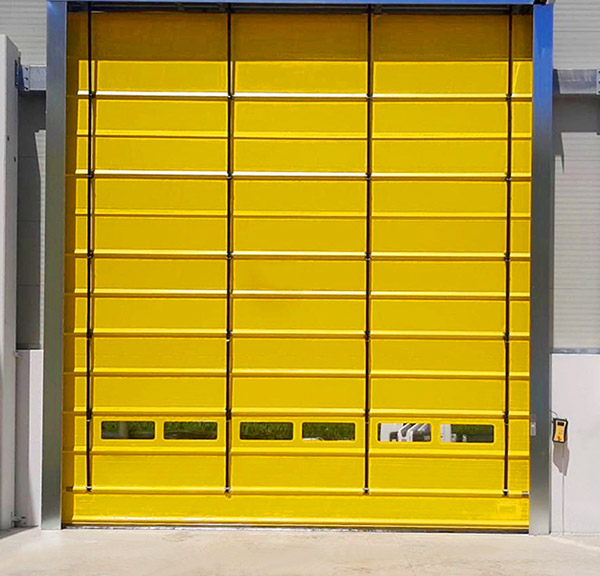

Vertigo
The Vértigo sectional door line has been developed with a focus on reliability and reduced management costs. Our sectional doors are manufactured according to customer needs, and Vértigo sectional doors are available in different dimension structures to accommodate openings for standard vehicles up to large dimensions. It is possible to produce Vértigo sectional doors up to 100 square meters in size, with adequate pressure resistance for the most extreme environments.
The standard equipment includes all elements necessary for installation, including user functionality and safety. Vértigo high-speed doors are delivered with pre-wired electrical installation at the factory, including junction boxes and motor/control panel cables, photocells, and accessories already installed.
All GLG products are certified according to the UNI EN 13241-1 product standard.
Commercial sectors
Automotive
Food
Aeronautical
Pharmaceutical
Retail
Cold storage
Industrial
Construction
Product details
Galvanized steel (optional INOX AISI 304).
0.8 m/sec
UNI EN 12424 Class 2
900 g/m² reinforced polyester, Class 2 fire reaction certification. One row of vision panels (standard). Special windows available upon request.
Digital control with multi-language monitor.
Manual release system (lever or chain).
3 mm thick. Average acoustic insulation of 17.5 dB (100–3150 Hz noise spectrum). Thermal insulation of 3.7 K with condensation reduction.
10,000 mm width X 10,000 mm height.
0.8 m/sec
440V Three-phase
Side or front-mounted, digit inverter type, 1/2.2 KW, pre-wired with digital encoder.
Photocell barrier and impact sensor.
UNI EN 13241-1.
Available curtain colors
Types of Vision Panels
1 vision panel
2 vision panels
3 vision panels
6 vision panels
Accessories
Floor loop
- Configuration via display.
- Sensitivity adjustment.
Horizontal photocell
- Detection Up to 20 meters.
